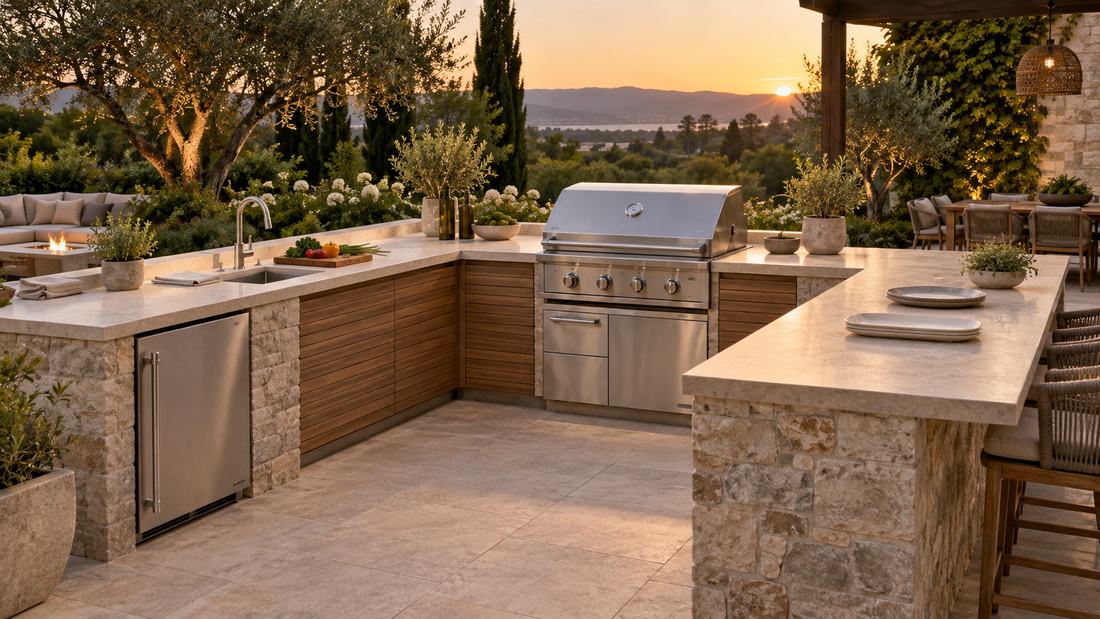

Outdoor Kitchen Layout: Where Should the Grill, Fridge, Sink, and Prep Space Go?

An outdoor kitchen works when it supports a simple sequence: get ingredients, wash or prep them, cook, then serve—without the cook and guests colliding. Layout shape matters less than getting that sequence right.

Best Outdoor Kitchen Appliance Placement at a Glance

• Grill: On the main cooking run, beside the prep counter.
• Prep space: Directly beside the grill, kept clear and continuous.
• Refrigerator: Near prep for cooking use; near the bar or serving area for beverage use.
• Sink: Beside the prep zone—on a return leg or the far side of prep—without breaking the grill-to-prep connection.
• Guest seating: Outside the cook's active work aisle.

Landing-space and aisle figures in this guide come from RCS Gas Grills' layout guidance. They are ergonomic planning suggestions, not appliance installation instructions or code requirements. Confirm the selected grill, refrigerator, and sink models before fabrication, and have gas, electrical, and plumbing work reviewed by qualified professionals and the local authority with jurisdiction.

Element	Best placement	Primary role	Avoid when possible	Key verification
Grill	Main cooking run, beside primary prep	Cooking and finishing food	Guest traffic and incompatible covered locations	Manual, fuel plan, cutout, clearances
Prep counter	Directly beside the grill	Staging, cutting, plating, and landing food	Across an aisle or on the guest side of an island	Enough uninterrupted counter after appliance cutouts
Refrigerator	Near prep for cooking; near serving for drinks	Ingredient or beverage storage	Direct heat exposure or blocked airflow	Outdoor rating, ambient range, ventilation, door swing
Sink	Far side of prep or return leg	Rinsing, handwashing, and cleanup support	Interrupting the grill-to-primary-prep run	Water, drainage, freeze protection, local requirements
Serving space	Guest-facing side, outside the work aisle	Drinks, plating, and socializing	The hot-zone work path	Seating circulation and door conflicts

Start With Workflow, Not Appliance Shopping

Start by organizing the outdoor kitchen into hot, cold, wet, prep, and serving zones. In a practical layout, ingredients move from refrigerator to sink or prep counter, then to the grill, then to a serving area without forcing the cook to cross guest traffic. The exact shape of the kitchen matters less than keeping that sequence simple.

Think in Hot, Cold, Wet, Prep, and Serving Zones

These are workflow categories, not building-code classifications:

• Hot: Grill and other cooking equipment.
• Cold: Refrigerator, beverage center, and cold storage.
• Wet: Sink and washing functions.
• Prep: Clear counter for staging, cutting, trays, and cooked-food landing.
• Serving: Bar ledge, guest-facing counter, and beverage access.

Map the Cook's Actual Movement

Test a layout by walking it as a cook would: retrieve ingredients, rinse or wash if a sink is included, prep beside the grill, cook, plate and serve, then clean up. Draw that sequence on a scaled patio plan before choosing cabinets, countertops, or appliance sizes. It will expose crowding, door-swing, and guest-traffic problems before they become expensive changes.

Where Should the Grill Go?

The grill should usually anchor the cooking side of the outdoor kitchen. Place it beside the main prep counter, orient smoke away from seating when site conditions allow, and avoid putting the open lid or active cooking area in a main walking route.

Make the Grill the Cooking Anchor

The grill generally belongs on the cook-facing working side of the kitchen: the side where the cook stands to access controls, food, tools, and prep space. Consider prevailing wind, seating, doors, and everyday patio traffic when selecting its orientation. These are comfort and workflow considerations; the selected grill's instructions determine final installation details.

Reserve Counter Space on Both Sides

RCS suggests at least 12 inches of landing space on each side of a grill, with 24 inches preferred on one side. Treat this as a planning baseline: designate the more generous side as the primary working side for trays, raw ingredients, utensils, and finished food.

The grill's actual cutout, clearance, insulating-jacket, ventilation, and service requirements come from its model-specific installation documentation.

Covered Installations Need Separate Review

Gas grills are designed for outdoor use only. The U.S. Consumer Product Safety Commission warns against using a gas grill indoors, in a garage, breezeway, carport, or porch, or under a surface that will burn. For a covered patio, verify the selected grill's manual and any applicable ventilation-hood documentation before finalizing the design. There is no universal overhead-clearance or hood-sizing number that applies to every grill and structure.

Where Should the Prep Space Go?

Put the primary prep space directly beside the grill. This is where raw ingredients, trays, tools, and cooked food land, so it should be a clear stretch of counter—not a narrow gap interrupted by a sink, side burner, or accessory.

Designate One Primary Prep Side

A grill benefits from landing space on both sides, but one side should become the main prep and plating area. Connect that side logically to the refrigerator and sink, if included. Avoid putting primary prep across an aisle, behind the cook, or on the guest side of an island.

Choose Counter Space Before Optional Appliances

In a compact footprint, a useful run of clear counter often improves everyday cooking more than another specialty appliance. Protect grill landing, prep, plating, and refrigerator landing space first. Then decide what the budget and patio can support. See the outdoor kitchen appliance priority guide for help sequencing those decisions.

Where Should the Outdoor Refrigerator Go?

Put a cooking refrigerator near the prep zone, not in the grill's direct heat path. Put a beverage refrigerator closer to the serving side when guests should be able to help themselves without entering the cook's workspace.

Keep Refrigeration Convenient, but Away From Heat

RCS advises keeping fire or heat away from cold appliances unless an installation is insulated for that purpose. That is a useful general practice, not proof that any particular refrigerator-and-grill arrangement is compatible. Verify heat exposure, ventilation, proximity, and required separation in both selected appliances' manuals.

Decide Who the Refrigerator Serves

• Cook-focused refrigerator: Place it near prep and the sink to support ingredient retrieval and leftover storage. It usually belongs on the working side.
• Guest-focused beverage refrigerator: Place it near bar seating or a serving zone so guests can get drinks without crossing the cook's active path.

In a larger kitchen, a separate beverage station may make sense. In a compact kitchen, one refrigerator may be enough if it does not compromise the primary prep run.

Plan for Door Swing, Ventilation, and Outdoor Use

Confirm the exact refrigerator's approved outdoor conditions, ambient operating range, ventilation needs, door swing, and service clearance—especially on sunny or exposed patios. Do not assume an indoor mini-fridge is suitable for outdoor installation.

Where Should the Sink Go?

Protect the uninterrupted grill-to-primary-prep connection first. Place the sink beside prep only when it does not break that connection; in compact layouts, the far side of prep or a return leg is usually the better workflow choice.

Keep the Sink Near Prep, Not in the Core Prep Run

A sink supports rinsing, handwashing, and cleanup when it sits close to prep. In a straight-line kitchen, that commonly means grill, then primary prep, then sink. In an L- or U-shaped kitchen, a return leg often keeps the sink nearby without consuming the grill's best landing counter.

Grouping wet-zone elements can simplify plumbing runs, but drainage, wastewater handling, freeze protection, and backflow requirements need review by a licensed plumber and local authority.

Leave Counter Space on Both Sides of the Sink

RCS suggests 18 inches of counter on one side of the sink and 12 inches on the other for produce, dishes, utensils, and cleanup tasks. This is ergonomic planning guidance, not a plumbing or code requirement.

Does a Sink Earn Its Space?

A sink is often worth the added utility scope for frequent outdoor meal prep, raw-ingredient handling, regular entertaining, or reducing trips into the house. It may be lower priority for a very compact patio, a grill-first weeknight setup, or a project where plumbing adds disproportionate cost. If you are weighing a sink against more refrigeration or a specialty appliance, review must-have vs. optional outdoor kitchen appliances.

How Much Aisle and Landing Space Do You Need?

For early layout planning, RCS suggests a 42-inch work aisle for one cook and 48 inches for two cooks. Treat those as ergonomic targets, not universal code or accessibility rules. The real test is whether someone can pass behind the cook while the grill lid, refrigerator door, or cabinet doors are open.

Planning area	RCS planning suggestion	Why it matters
Grill landing space	12 inches minimum each side; 24 inches preferred on one side	Room for trays, utensils, raw ingredients, and cooked food
Sink landing space	18 inches on one side; 12 inches on the other	Rinsing, dish handling, and food prep
Refrigerator landing space	15 inches nearby	A place to set ingredients and drinks after opening the door
Work aisle, one cook	42 inches minimum	Keeps the cook's path clear
Work aisle, two cooks	48 inches preferred	Provides more room for shared cooking

These are RCS ergonomic planning suggestions, not model-specific installation requirements, code requirements, or accessibility standards. Confirm selected appliance documentation and applicable local requirements before construction.

Which Layout Fits Your Space?

Layout	Best for	Strengths	Watch for
Straight-line	Narrow patios and simple grill stations	Compact, low-complexity workflow	Limited counter; sequence appliances carefully so refrigeration is not exposed to grill heat
L-shaped	Everyday cooking plus entertaining	Separates hot/prep work from sink, fridge, or serving on a return leg	Inside-corner usability and appliance door-swing conflicts
U-shaped	Larger patios and frequent entertaining	Supports dedicated grill, sink, and storage zones	Center aisle can become cramped if doors or seating intrude
Island	Grill-centered entertaining hubs	Social layout with separate cook and guest sides	Circulation, utilities, ventilation, and service access need early planning

Three Practical Layout Templates

Compact grill-and-prep run: Landing counter → grill → primary prep counter, with a compact refrigerator toward the prep end. Add a sink only when it does not eliminate core prep space.

Entertainer's L-shape: Put grill and primary prep on the main run. Place sink and refrigerator on the return leg for cook access without sending guests through the hot zone. Add a guest-facing serving ledge if space allows.

U-shaped loop: Center the grill on one leg with landing counter on both sides, place sink and prep on a second leg, and refrigeration or storage on a third. Keep serving outside the central aisle.

A Better Order for Planning

1. Analyze the site. Measure the patio and note sun exposure, wind, doors, views, utilities, and existing traffic paths.
2. Choose the grill and fuel plan before cabinetry. The exact grill affects the cutout, clearance, fuel, ventilation, and service plan. Once you have a realistic footprint, browse built-in and outdoor kitchen grills before finalizing counters or framing.
3. Protect prep, landing, and aisle space. Solve these core functions before allocating room to optional modules.
4. Add refrigeration, sink, storage, and guest features. Base the decision on how the household cooks and entertains rather than how many appliances can fit.
5. Verify documentation before building. Confirm grill cutout and clearance details, fuel requirements, refrigerator ventilation and outdoor suitability, plumbing scope, electrical needs, covered-installation needs, utility shutoffs, and service access.

Common Layout Mistakes

1. Putting the grill in guest traffic. Keep the active cooking side separate from seating and circulation where the site allows.
2. Adding appliances before protecting prep counter. Secure grill landing and primary prep space first.
3. Treating every refrigerator as a beverage fridge. Decide whether it serves the cook, guests, or both before placing it.
4. Ignoring heat, sun, ventilation, or door swing around refrigeration. Keep heat away from cold appliances as a general practice and verify exact models.
5. Installing a sink without a plumbing plan. Involve a licensed plumber before finalizing cabinet placement.
6. Choosing the grill after building the island. Select the exact model early enough to plan its cutout, clearances, and service access.

Final Layout Checklist

• Grill is sited for outdoor use appropriate to the selected model.
• Smoke direction and lid orientation were considered relative to seating and traffic.
• Grill has landing counter on both sides, including a larger primary prep side where possible.
• Main prep counter sits directly beside the grill and is not interrupted by the sink.
• Sink sits on the far side of prep or a return leg when included.
• Refrigerator placement matches its role: cooking, beverages, or both.
• Refrigerator heat exposure, ventilation, door swing, and outdoor-use requirements were reviewed.
• Sink plumbing, drainage, and local requirements were reviewed.
• Work aisle remains usable with appliance and cabinet doors open.
• Guest seating remains outside the cook's active work zone.
• Selected appliance manuals were reviewed before cabinet and countertop fabrication.

Match the Grill to Your Kitchen Plan

Once the footprint and fuel plan are set, match the grill format to the way you cook. A straightforward gas built-in such as the American Made Grills Atlas 36-inch built-in natural-gas grill can suit a permanent gas-focused kitchen. A multi-fuel option such as the American Made Grills Encore 36-inch built-in hybrid grill may better fit a household that wants gas convenience plus charcoal or wood-fired cooking flexibility.

Use Compare Grills by Cooking Style to narrow the format before committing to the island. If a selected built-in grill needs a protective liner for its proposed installation, that liner must be model-specific. For example, the Summerset 32-inch Sizzler grill liner is designed for compatible Sizzler installations; it does not replace the grill's own clearance, cutout, or installation requirements.

FAQ

Should the refrigerator be next to the grill?

Do not treat direct adjacency as universally acceptable or prohibited. Keep heat away from cold appliances as a general layout practice, then verify the exact refrigerator's and grill's instructions for heat exposure, ventilation, and required clearances.

How much counter space should be beside an outdoor grill?

RCS suggests at least 12 inches on each side, with 24 inches preferred on one side, as a planning target. This is ergonomic guidance and does not replace the grill's installation manual.

What's the best layout for a small patio?

A straight-line or compact L-shaped layout often works best because it protects a direct grill-to-prep workflow without creating a cramped central aisle. Prioritize clear prep counter and circulation before adding a sink or specialty appliance.

How wide should the work aisle be?

RCS suggests 42 inches for one cook and 48 inches for two as ergonomic planning targets. Appliance-door swing, cabinetry depth, accessibility needs, site conditions, and local requirements may require more space.
