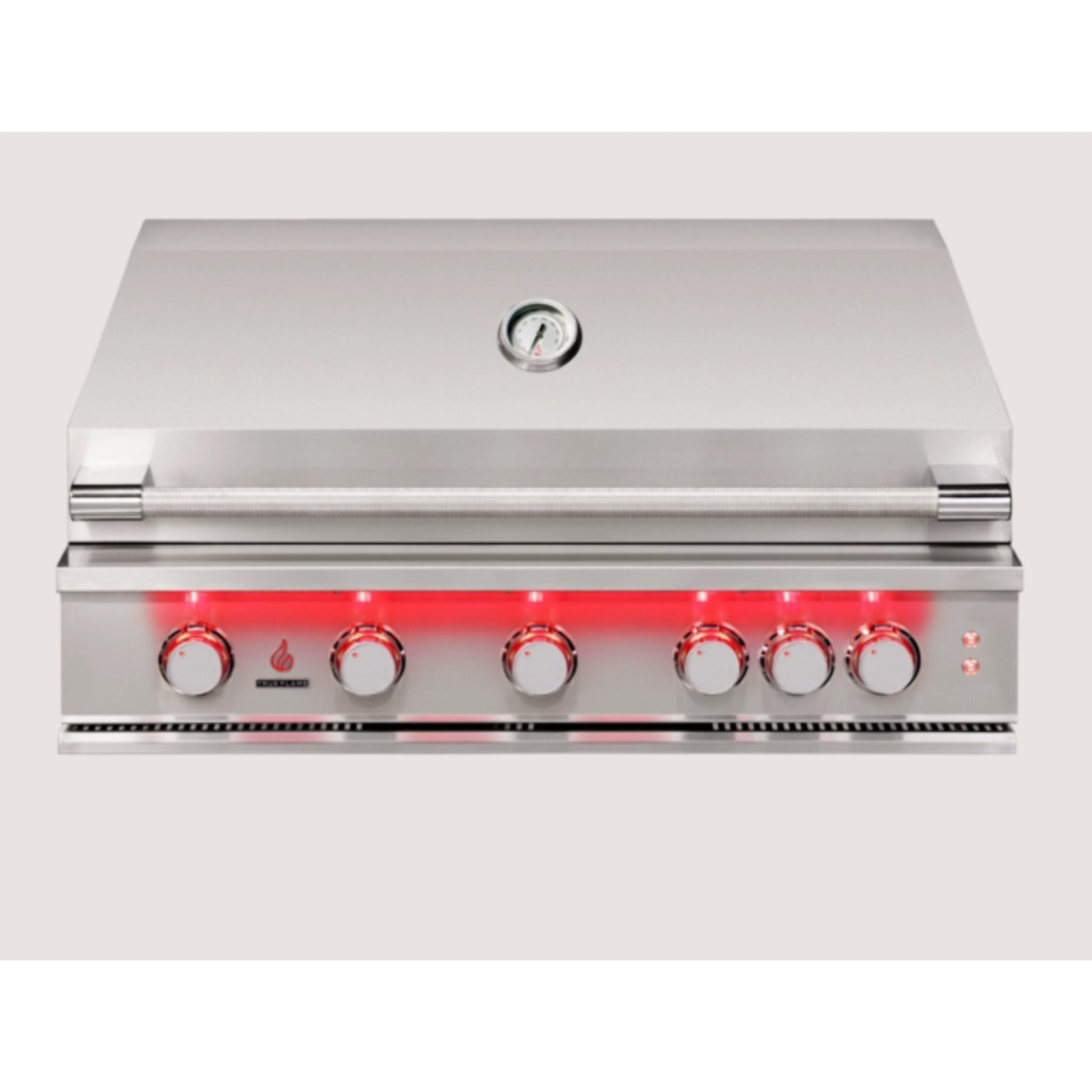

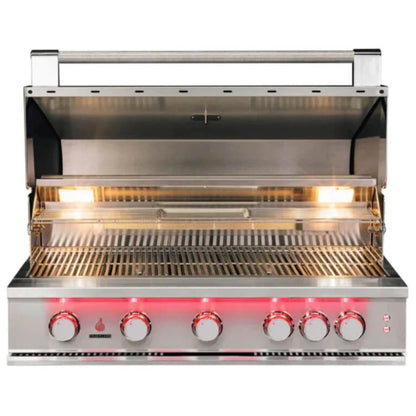

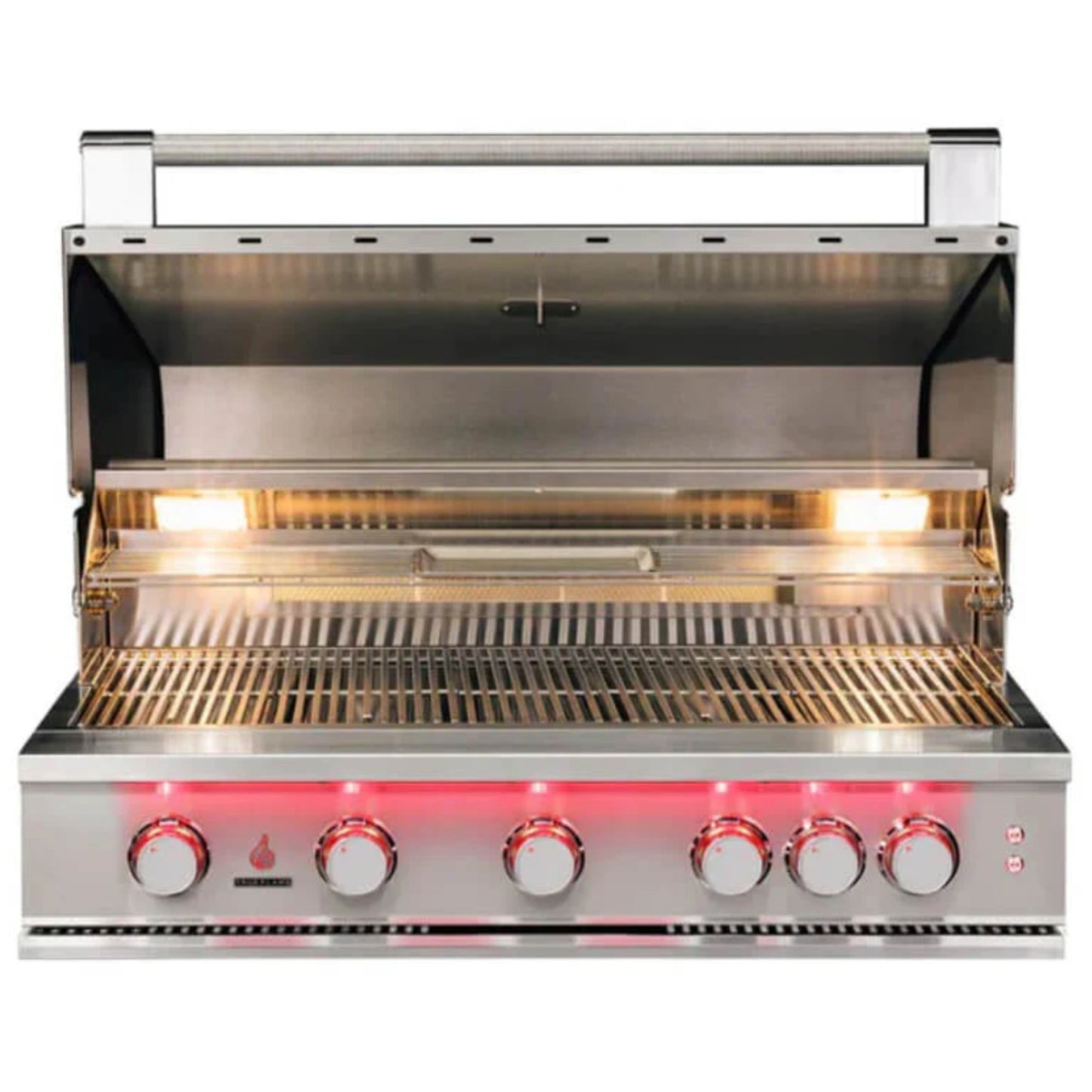

TrueFlame 40" 5 Burner Gas Grill - Liquid Propane

Commanding Performance. Timeless Design. Unmatched Power.

For those who demand nothing less than excellence, the TrueFlame 40″ Liquid Propane Grill is the ultimate outdoor centerpiece. With five 14,000 BTU cast stainless steel burners and an additional 10,000 BTU infrared back burner, this grill delivers 80,000 total BTUs of controlled power across an expansive 892 sq. in. cooking area. Designed for large gatherings and gourmet enthusiasts alike, it brings professional-grade performance home.

Luxury Meets Performance

The TrueFlame 40″ is where elegance meets endurance. Featuring a patent-pending multi-position hood, LED control lighting, and halogen interior illumination, it ensures precision at every level. The optional infrared sear burner turns up the heat for steakhouse-level results, while heat zone separators and #304 flame tamers guarantee consistency from edge to edge.

User Manual

#304 Stainless Steel Construction – Commercial-grade build for lasting beauty.

5 Cast Stainless Steel Burners – 14,000 BTUs each for superior performance.

10,000 BTU Infrared Back Burner – Ideal for rotisserie and slow-roasting perfection.

892 sq. in. Total Cooking Area – Expansive surface for entertaining.

Optional Infrared Sear Burner – Precision searing capability.

Full LED Lighting System – Soft glow with white-to-red active burner indication.

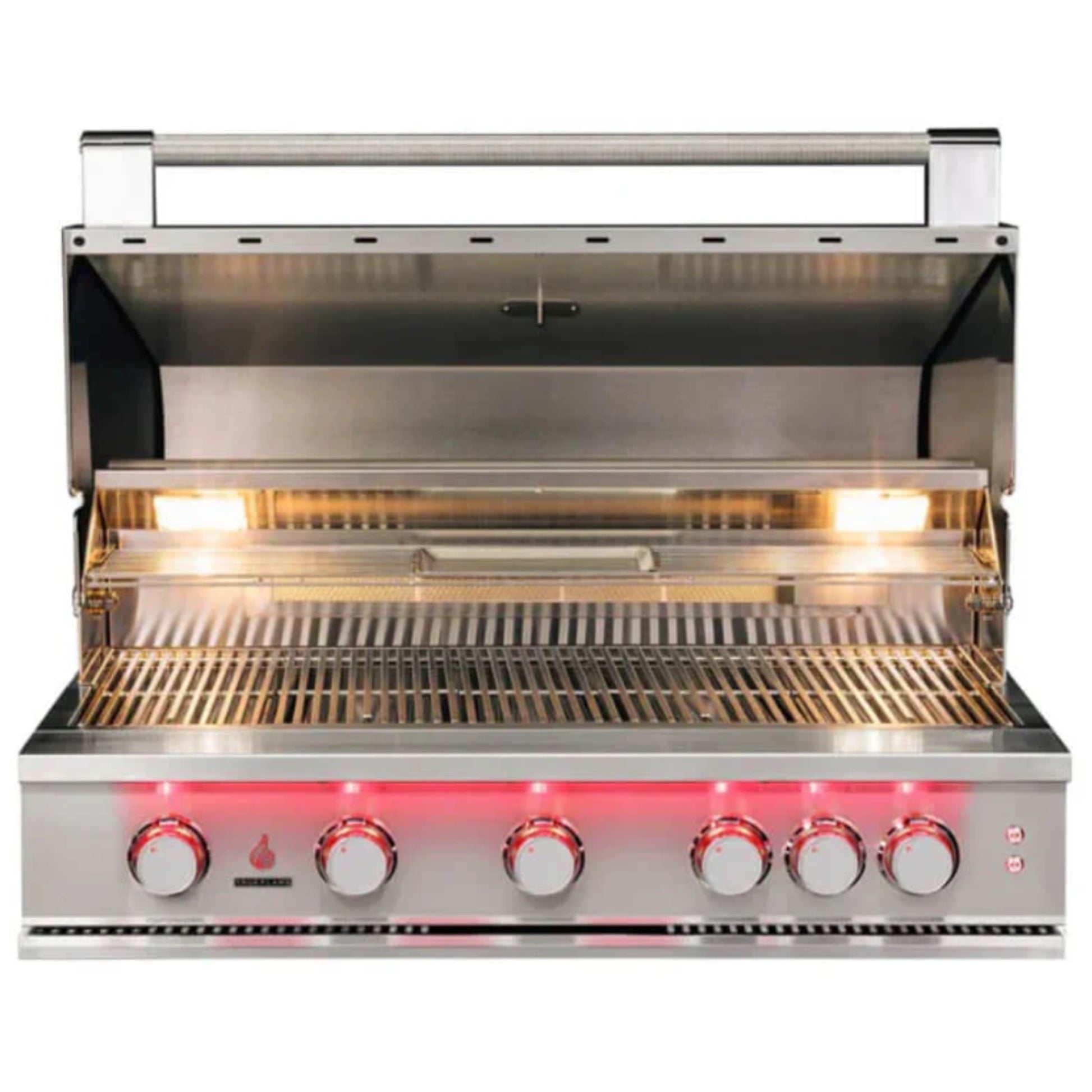

Halogen Interior Lighting – Brilliant clarity for evening grilling.

Gold Standard Lifetime Warranty – Confidence that lasts a lifetime.

TrueFlame Grill Specs

Fuel Type: Liquid Propane (LP)

Overall Size: 40″

Primary Construction: #304 Stainless Steel

Cooking Surface Area: 892 sq. in. (includes warming rack)

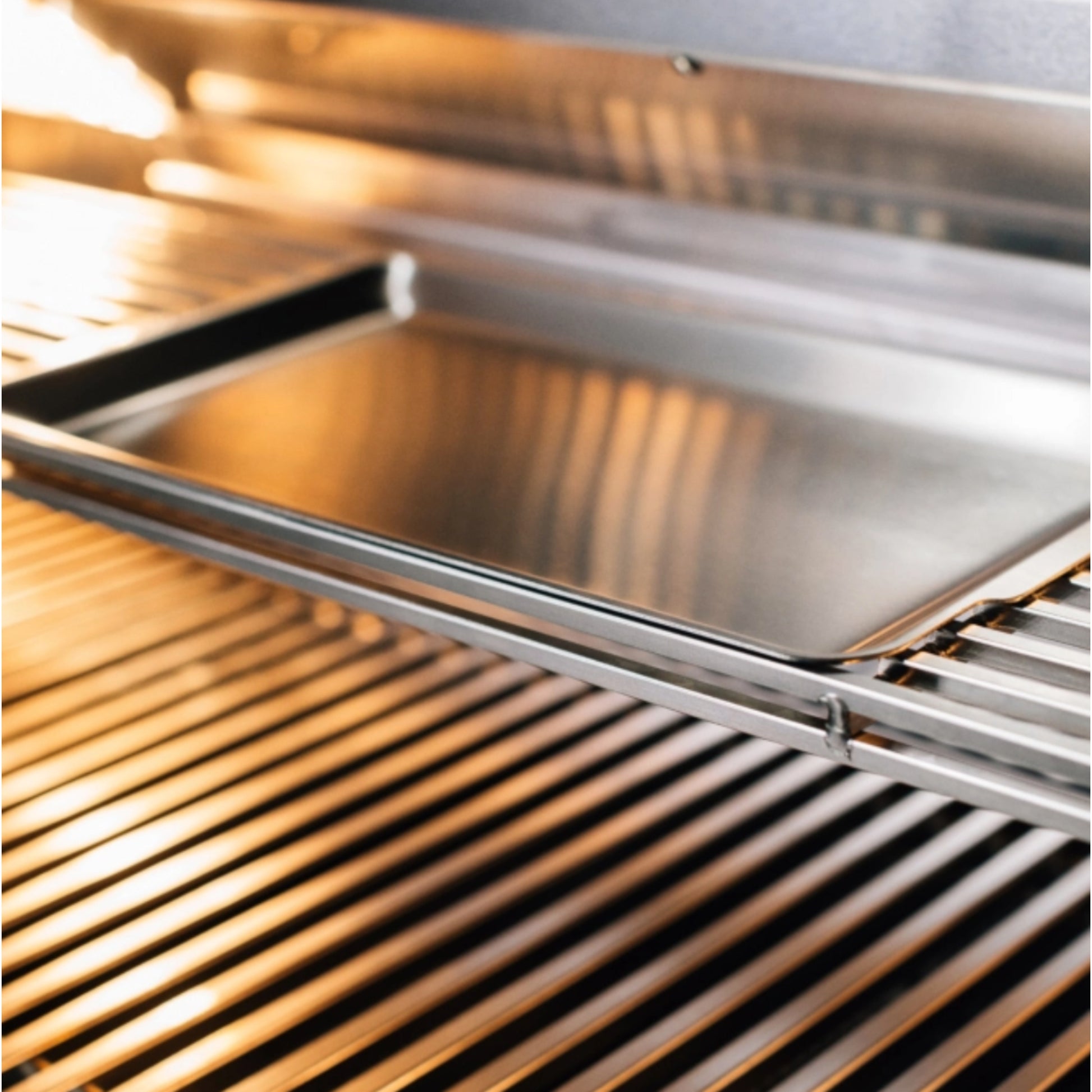

Upper Warming Rack: Yes – built-in, removable warming tray

Upper Rack Area: 229 sq. in.

Total Cooking Area: ~1,121 sq. in.

Performance & Burners

Number of Main Burners: 5

Burner Type / Material: #304 Cast Stainless Steel

BTUs per Main Burner: 14,000

Total BTUs (Main): 70,000

Optional Drop-In Infrared Burner: Yes

Rear Infrared Burner: Yes, 10,000 BTU

Ignition & Heating Control

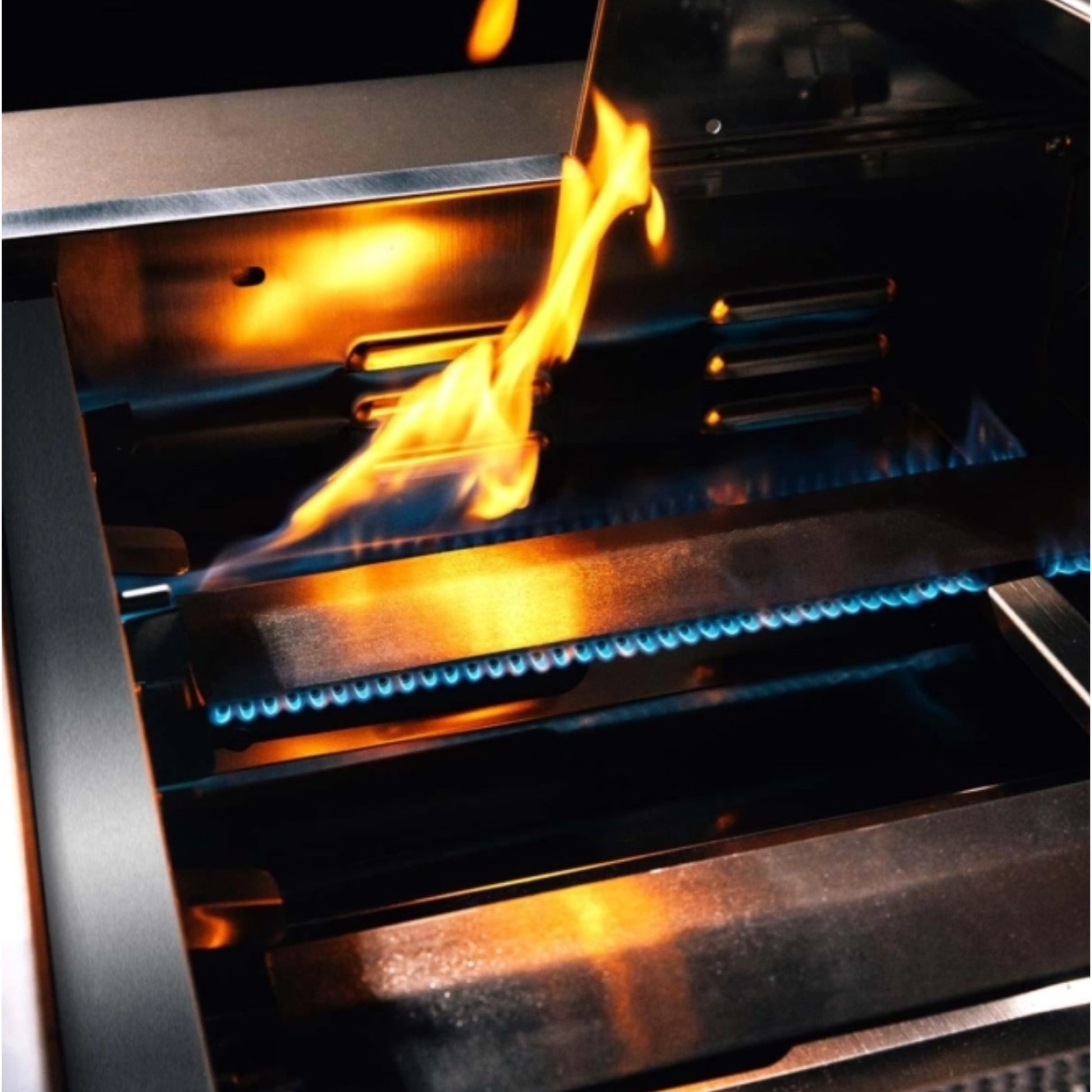

Ignition System: Flame Thrower

Cooking Grates: Square Stainless Steel Cooking Grates

Heat Zone Separators: Yes

Flame Tamers / Burner Covers: #304 Stainless Steel

Lighting & Visual Features

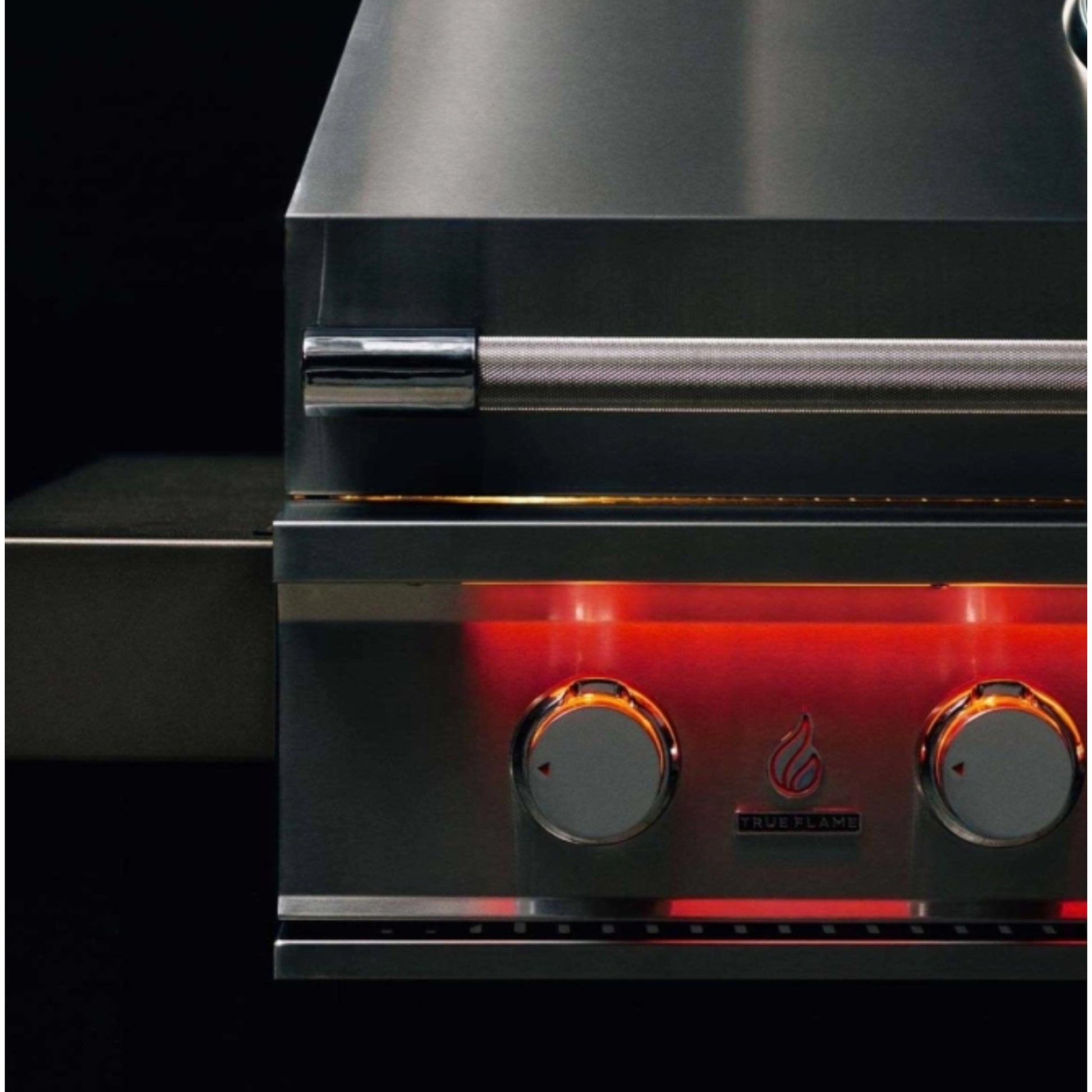

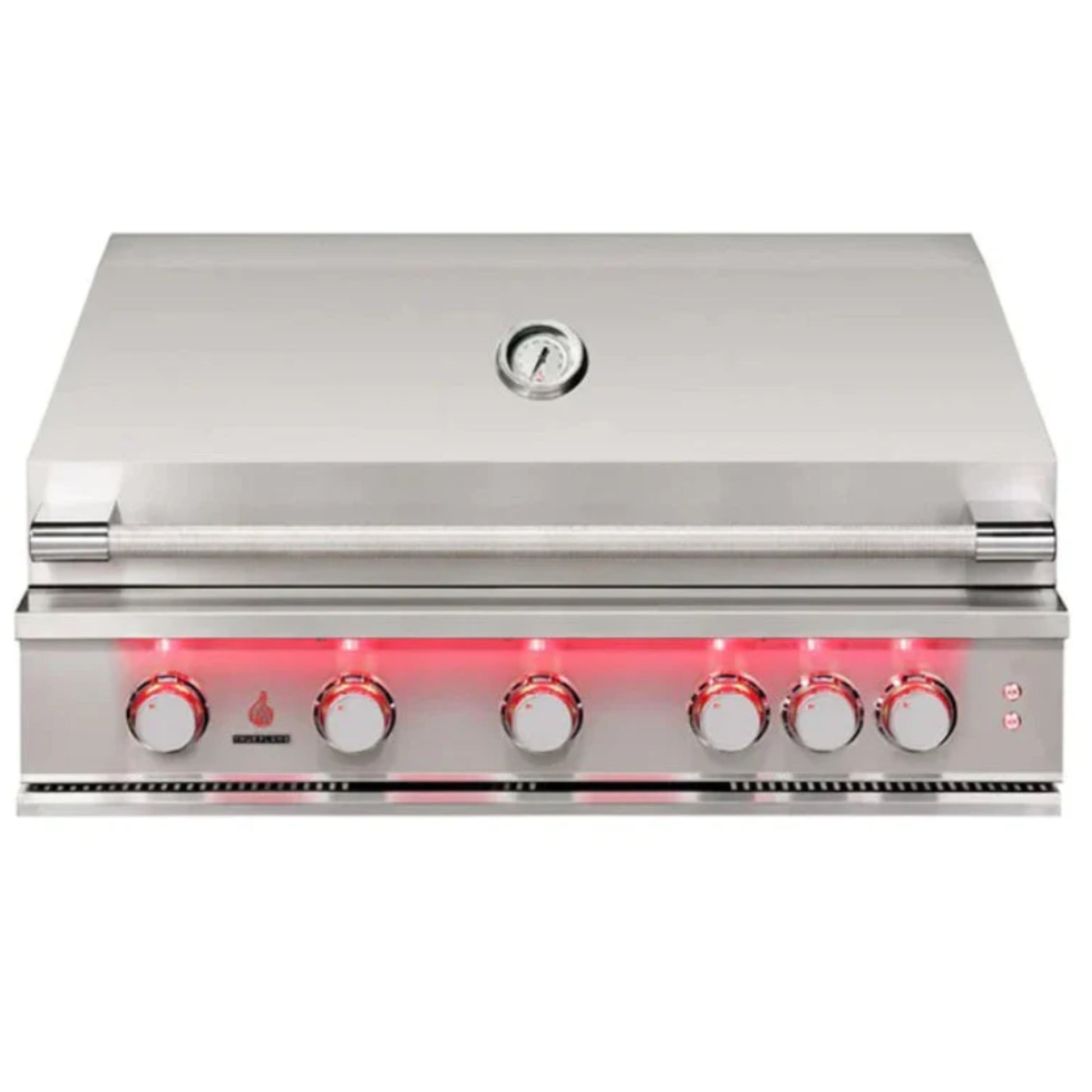

Front Panel LED Lighting: Full-length LED strip above knobs

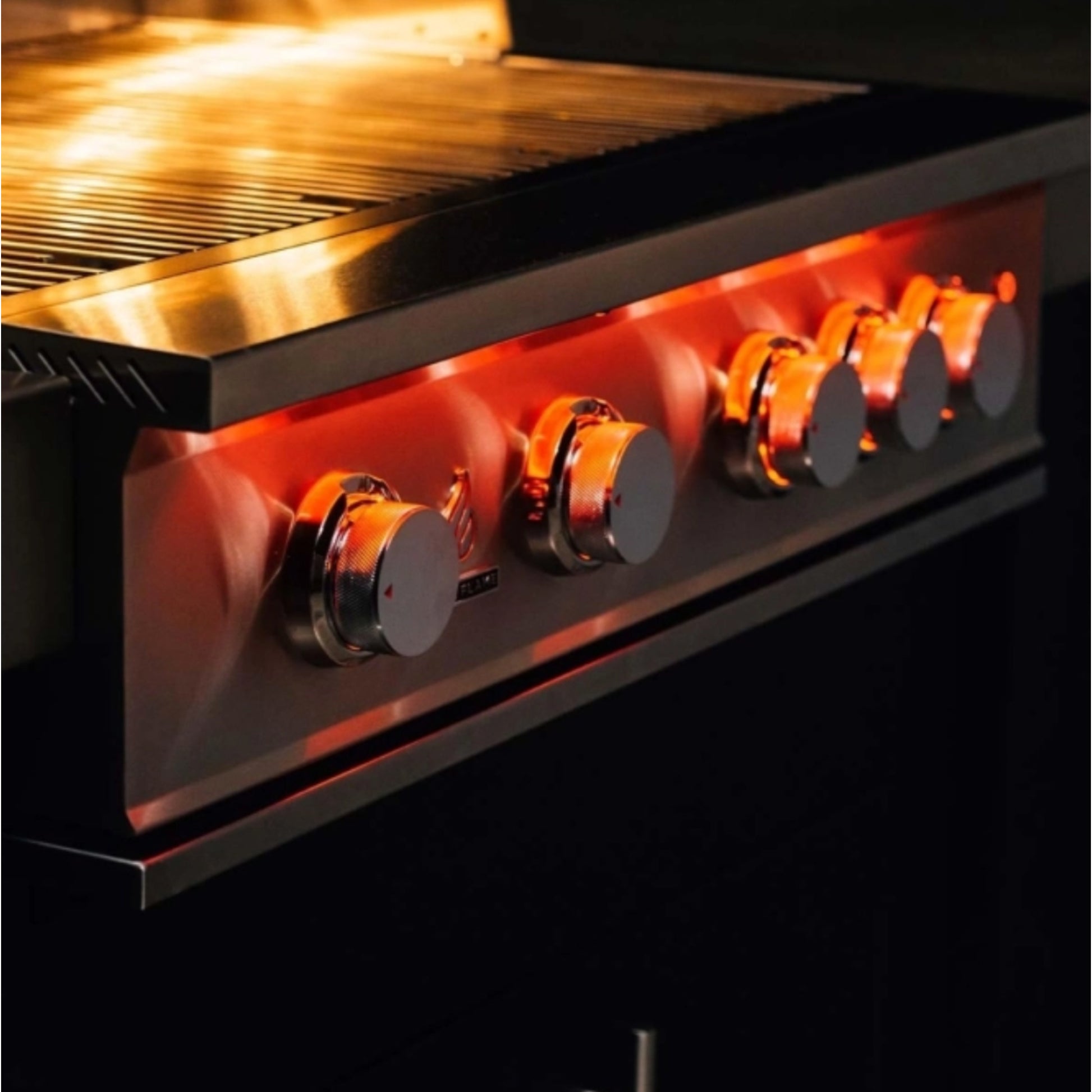

LED Indicator Lighting: White-to-red bezel lighting behind each knob

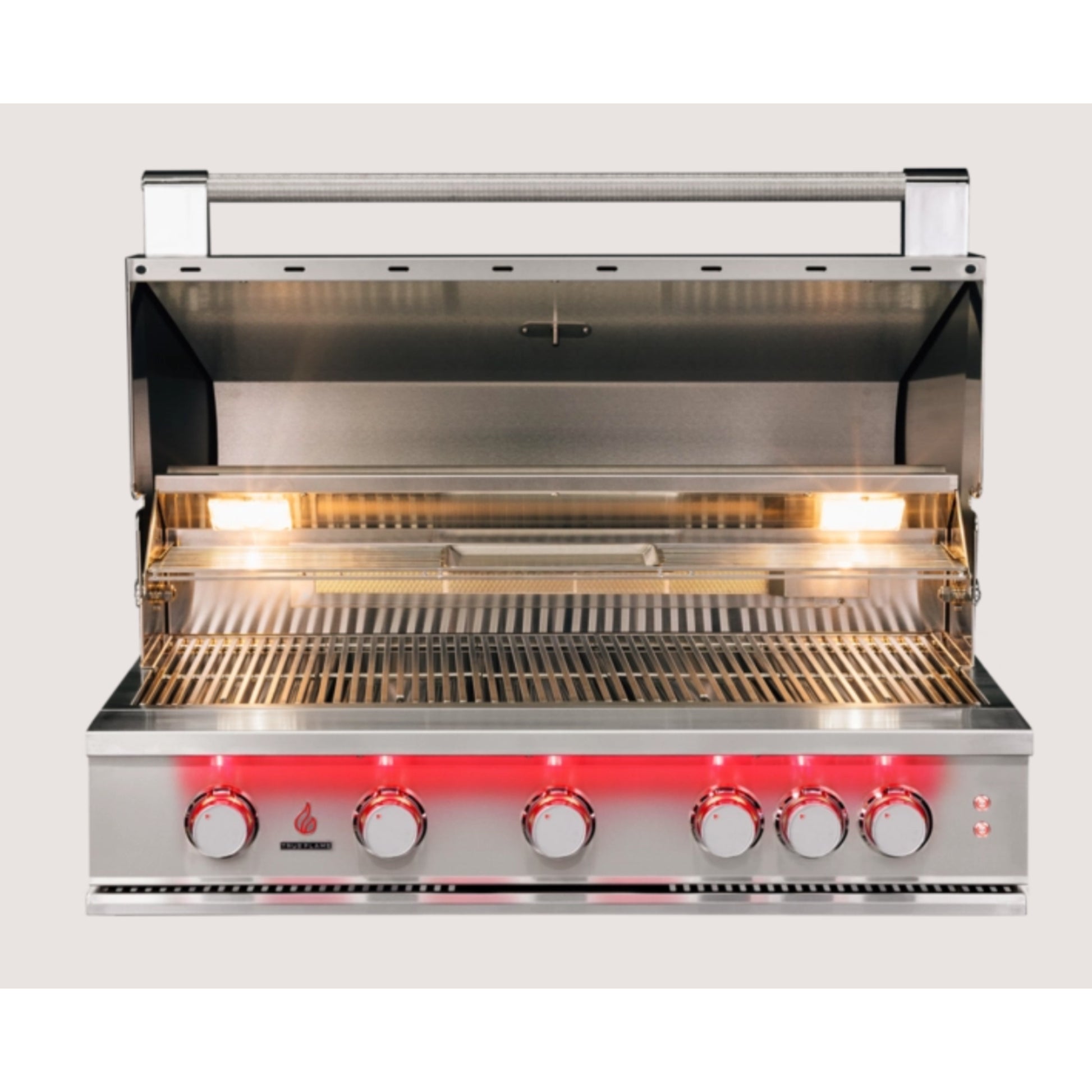

Interior Lighting: Halogen Lighting

Design & Functionality

Hood Design: Patent-Pending Balanced Multi-Position Hood Hinge

Rotisserie Kit: Optional

Burger Count (Approximate Capacity): 24

Warranty & Certifications

Warranty: Gold Standard Lifetime Warranty

Certifications: CSA Certified, ETL Rated for Outdoor Use
